Description

Mineral Wool SF16 & SF24 are a premium semi-rigid stone wool batt insulation for exterior wood/steel stud assemblies in new builds and renovations. Its innovative flexible edges compress during installation, then spring back to seal studs and fill wall cavities fully—ensuring easy fitting and consistent rated R-value. Non-combustible with strong fire resistance, it retains integrity under direct flame, emits no toxic smoke, and stops flame spread (meeting strict fire standards). It also resists water/moisture (preventing mold) and offers excellent sound absorbency for better indoor acoustics. A high-performance choice for home energy efficiency, it cuts wall heat transfer to lower HVAC loads. GREENGUARD and ULC certified, it supports healthier, safer interiors.

Specifications

Item

Performance

Test

Standard

Reaction to

Fire

Flame spread rating (FSR)=15,

Smoke developed classification (SDC)=5

Class A

CAN/ULC S

102

GB/T 8624

Density

≥1.94lbs/ft3 (≥30kg/m3)

ASTM C167

Corrosion

Resistance

Corrosiveness to Steel-Passed

ASTM C665

GB/T 11835

Reaction to

Moisture

Mass Moisture Absorption Rate (50℃,95% RH, 96H) ≤0.5%

Hydrophobicity Rate ≥98%

GBT 5480

GBT10299

Asbestos

Phase

Asbestos-Free

HJ/T206

Dimension

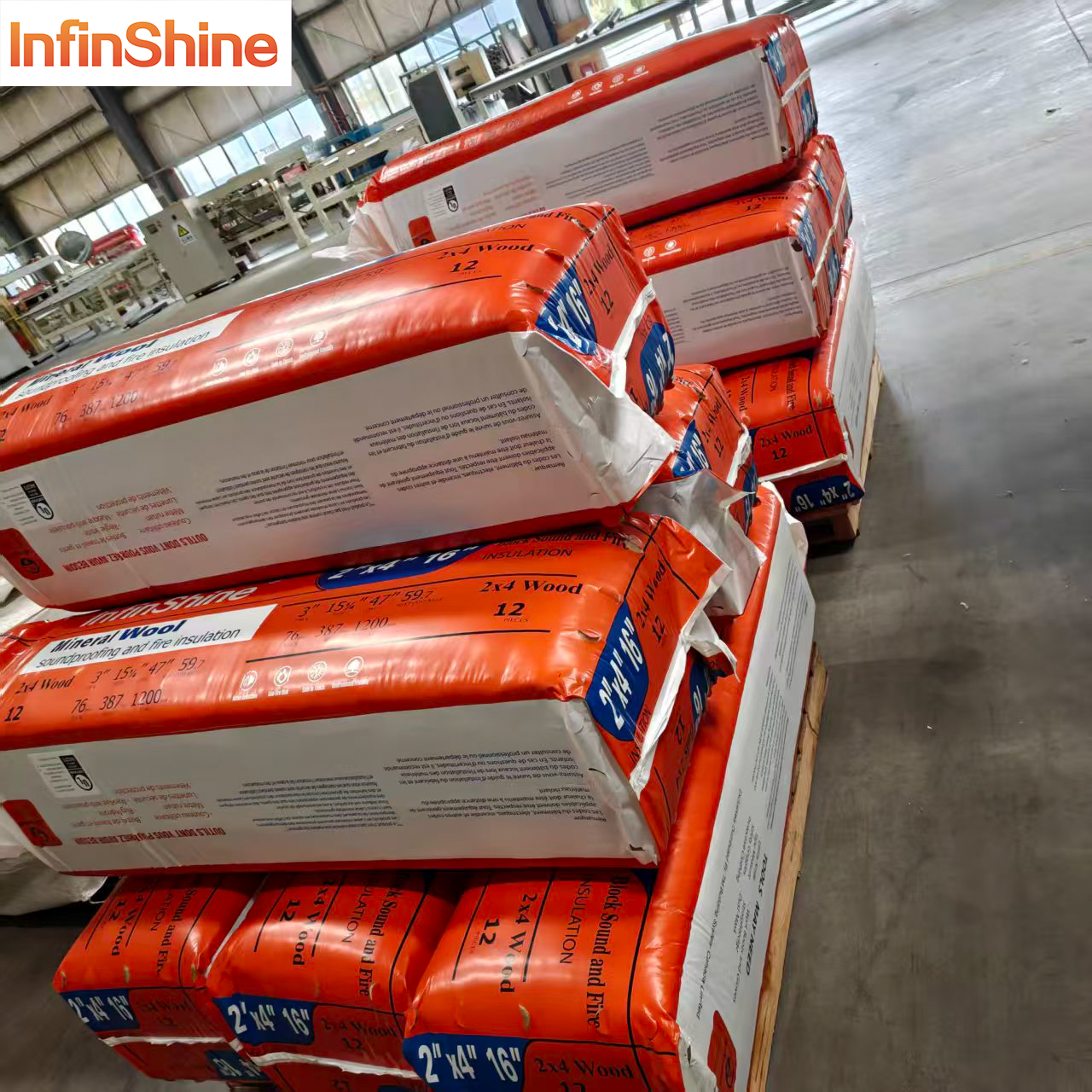

47" x 15.25" x 3" (1194mm X 387mm X 76mm),12pcs/bag 47" x 23" x 3" (1194mm X 584mm X 76mm), 8pcs/bag

Acoustical

Performance

Thickness

(In.) 3

125Hz

0.19

250Hz

0.83

500Hz

1.2

1000Hz

1.14

2000Hz

1.04

4000Hz

1.09

NRC

ASTM C423

1.05

Scope of Application

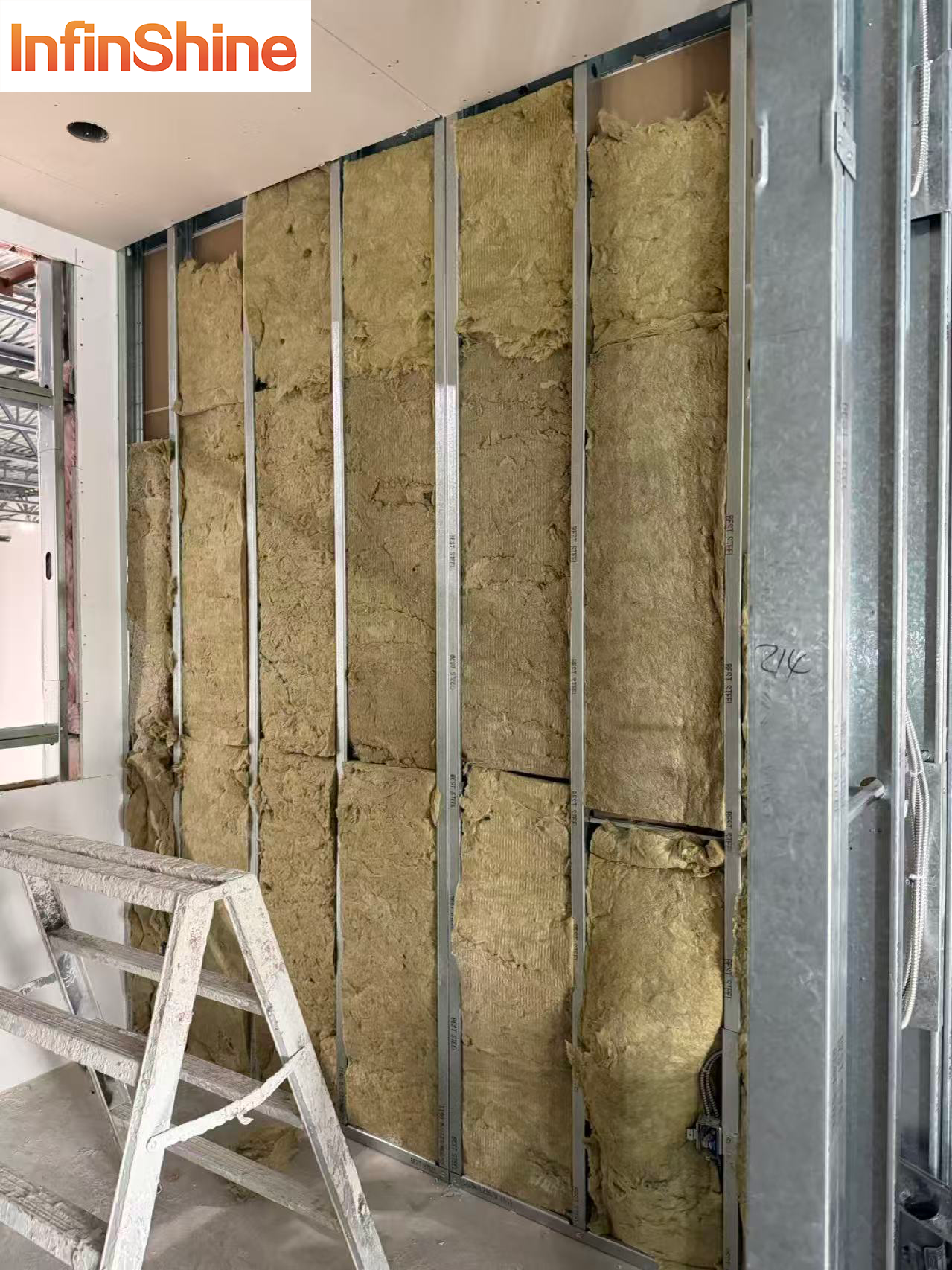

u Engineered specifically for framed exterior wall cavities.

u Precision-sized for compatibility with both wood and steel stud construction.

u Versatile application suitable for attic floors and cathedral ceilings.

u Optimal solution for basement renovation projects.

Certificates

Download

Technical Data Sheet

Mineral wool SF Data Sheet-R+16

Send Your Message To Us

* Product Name:

* E-mail:

* Contact Number:

Company Name:

* Details:

Post Your Request Now

Mineral Wool SF16 & SF24

Soundproofing and Fire Insulation

Features & Benefits

Superior Noise Reduction & Sound Absorption
Water & Moisture Resistant
Non-combustible & Fire-resistant
Effortless Installation
